Description

Eye Relief 17.0mm
Angular Field of View 6.4º
Close Focus 1,8m
Interpupillary Distance 55mm – 74mm
Linear Field of View 102m@1000m
Range Reflective Up to 2740m
Range Tree Up to 1645m
Range Deer Up to 1370m
Min Range 5,5m
Height17cm
Width 13cm
Weight 918g

Ranging Modes

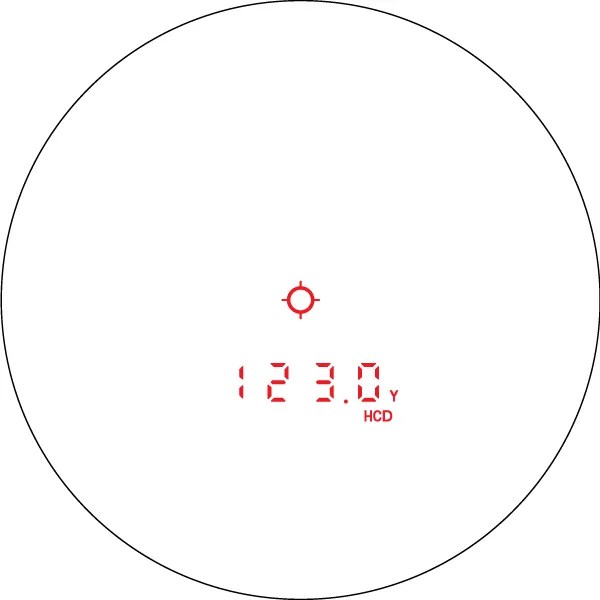

Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
SCAN Feature: Displays continuous distance readings while panning across a landscape.

Target Modes
Normal Mode: The standard mode providing the target’s range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.

HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.

Red OLED Display
Optimized for low light.

Fully Multi-Coated Lenses Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Nitrogen Gas Purged Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt,
Ranging FormatRange in yards or meters.
Rubber Armor Provides a secure, non-slip grip, and a durable external protection.
Waterproof Designed to withstand harsh weather conditions.
Fogproof Designed to withstand a wide range of temperatures.
Shockproof Designed to withstand the highest levels of impact.
Tripod Adaptable Compatible with a tripod adapter, allowing use on a tripod or car window mount.
